Affordable Polyurethane Modular Coolroom Panels Exporter: Specification, Ordering and Quality Notes

Thermal efficiency depends on the integrity of the polyurethane foam core and the bond strength to the outer skins. When the density of the PIR core is inconsistent, the panel R-value fluctuates, leading to thermal bridging and potential condensation at the joints. Our manufacturing process utilizes high-pressure injection molding to ensure a uniform foam density of 40-42 kg/m³, which prevents the internal voids often found in lower-cost vacuum-bonded alternatives.

What This Product Is and Where It Fits

These modular systems are designed for rapid assembly in environments where site labor is a primary cost. The panels feature a cam-and-tongue interlocking system that creates a tight mechanical seal, reducing the need for on-site silicone. This construction is critical for cold storage facilities, food processing plants, and pharmaceutical laboratories where strict humidity control is a non-negotiable requirement.

• Panel thickness ranging from 50mm to 200mm based on required thermal resistance.
• Skin material: 0.5mm to 0.7mm pre-coated galvanized steel.
• Core material: Polyisocyanurate foam (PIR) or Polyurethane (PUR) rigid foam.

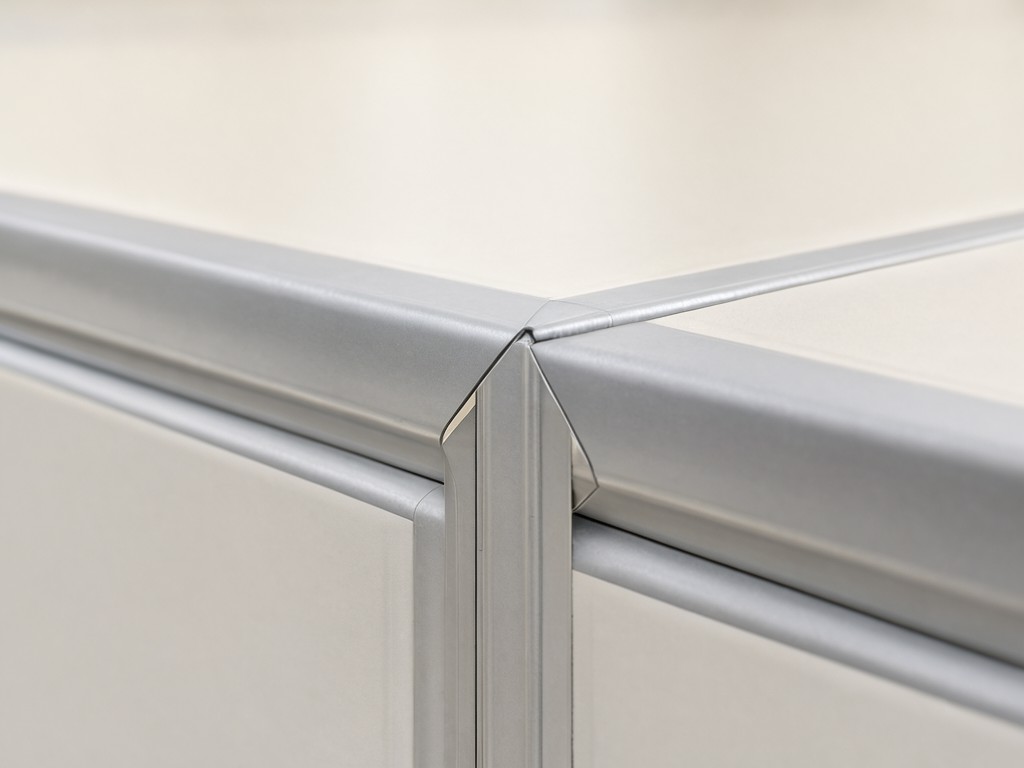

• Joint profile: Hidden-groove cam-lock for water-tight integrity.

Where Cheap Alternatives Fall Short

Low-cost exporters often utilize thinner gauge steel or lower-density foam to reduce material volume. This results in "oil-canning," where the metal surface buckles under slight pressure, compromising the structural rigidity of the entire wall. Furthermore, poor-grade adhesives fail under the expansion cycles of the metal, leading to air pockets that degrade the thermal performance over the first twelve months of operation.

Requirements by Segment

Procurement officers for large-scale developments prioritize dimensional consistency across high-volume orders. We provide batch-specific tolerances of ±1mm on panel length to ensure that the modular joints align without requiring extensive trimming on-site. For wholesale distributors, the focus shifts to the load-bearing capacity of the panels, which is determined by the span distance allowed without structural support.

Capacity, Tooling and Scheduling

Lead times for standard panel widths are dictated by the production schedule of the foam injection line. Custom lengths or specialized joint profiles require a 3-week lead to account for tooling adjustments and sample testing. We require a technical drawing approval 14 days prior to production to ensure the panel layout matches the site's structural plan.

Packing and Logistics

Export-grade packaging is mandatory to prevent edge-damage during maritime transit. Panels are bundled on reinforced steel-strapped pallets and vacuum-shrinkwrapped to prevent moisture ingress. For sea freight, we utilize timber crates to protect the corner profiles from shearing during crane-operated loading and unloading operations.

Care, Storage and Service Life

To maintain the warranty, panels must be stored stored horizontally on a flat surface to avoid bowing. Prolonged exposure to UV radiation before installation can degrade the pigment in the coating. Once installed, the structural service life typically exceeds 20 years, provided the joint integrity remains intact and the steel skins are not mechanically punctured.
