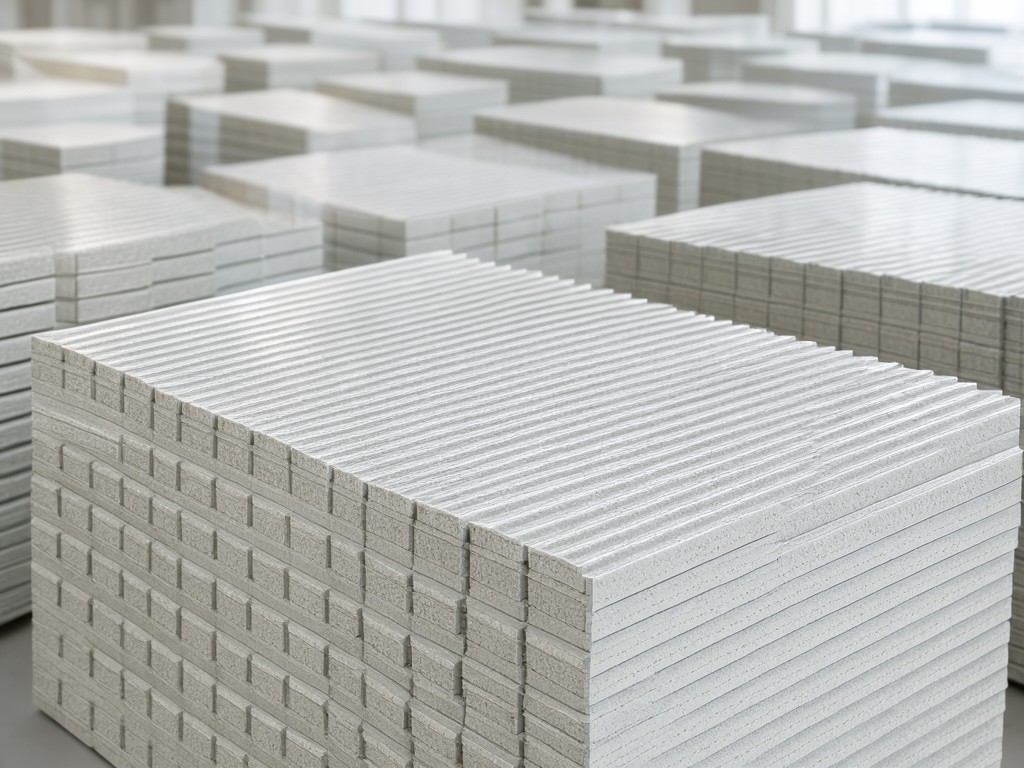

ce certification pir thermal insulation exterior panels factory: What Should Check Before Ordering
Consistency depends on the bond strength between the PIR core and the mineral-faced skins. While PIR foam offers superior R-values compared to EPS, its structural integrity is sensitive to delamination if the adhesive application is not calibrated for specific humidity levels. Buyers must evaluate the thermal expansion coefficient of the panel skins to prevent buckling during rapid seasonal temperature shifts.
Technical Note: Thermal conductivity (λ) typically ranges between 0.022 and 0.028 W/mK, but performance fluctuates based on the foam density achieved during the curing process.
What This Product Is and Where It Fits
These panels function as integrated thermal and moisture barriers for high-performance envelopes where space is constrained. The polyisocyanurate core provides a closed-cell structure that allows for thinner profiles to meet strict U-value requirements. In commercial cladding and industrial construction, these units replace the need for separate insulation layers and vapor membranes, reducing labor hours.
The interface between parts determines the long-term air resistance of the assembly. If the panel edges are not precision-milled, thermal bridging occurs which bypass the PIR core, leading to localized degradation and loss of thermal efficiency over several years.
Material Options and Their Trade-offs
| Material Configuration | Primary Benefit | Trade-off |
|---|---|---|
| Aluminium Foil Facing | High vapor barrier & reflective properties | Susceptible to mechanical tearing during transport |
| Mineral Wool Facing | Fire rating (Class A1) and breathable | Lower thermal resistance per mm of thickness |
| Glass Reinforced Skin | Impact resistance and structural stiffness | Higher unit cost compared to foil |
Assumptions Buyers Should Stop Making
Deflection under load governs the lifespan of exterior panels in long-span applications. Many buyers assume the PIR core is purely for insulation, but it provides the shear strength for the cladding system. If the load-bearing capacity is miscalculated, the skins will crack, leading to water ingress and foam decomposition.
It is also a misconception that all PIR panels are equivalent. The density of the foam core directly affects the gas aging rate, which determines how much the R-value will drop over a 25-year service cycle.
Usage Scenarios and Buyer Segments
- Cold Storage Infrastructure: Requires high density PIR to maintain internal temperatures against extreme external fluctuations.
- Residential Retrofit: Focuses on fire safety and aesthetic skin compatibility for thin-profile facades.
- Industrial Warehousing: Demands high compressive strength and resistance to wind-load pressure cycles.
Inspection Items and Test Methods
To prevent field failures, the factory protocol focuses on dimensional stability and adhesive precision. We test the bond strength to ensure the skins do not separate under thermal stress.
| Usage Condition | Typical Failure | Prevention Specification |
|---|---|---|
| Extreme Thermal Cycling | Skin delamination | High-modulus adhesive bond |
| High Humidity Exposure | Water vapor penetration | Closed-cell structure >95% |
| Structural Wind Load | Surface deformation | Min. compressive strength rating |
Capacity, Tooling and Scheduling
Production volume is dictated by the curing time of the PIR foam core. Custom tooling for specific panel profiles or tongue-and-groove joints adds to the initial lead time but ensures uniformity.
| Parameter | Standard Range |
|---|---|
| Minimum Order Quantity (MOQ) | 500 m² (depending on profile) |
| Standard Lead Time | 3-5 weeks for standard stock |
Keeping Repeat Orders Supplied
Reliable supply depends on batch-to-batch chemical consistency. For private-label buyers, maintaining the same R-value across orders is critical to avoid project-level rejection. We utilize batch traceability to ensure that every shipment matches the approved sample performance profile.
